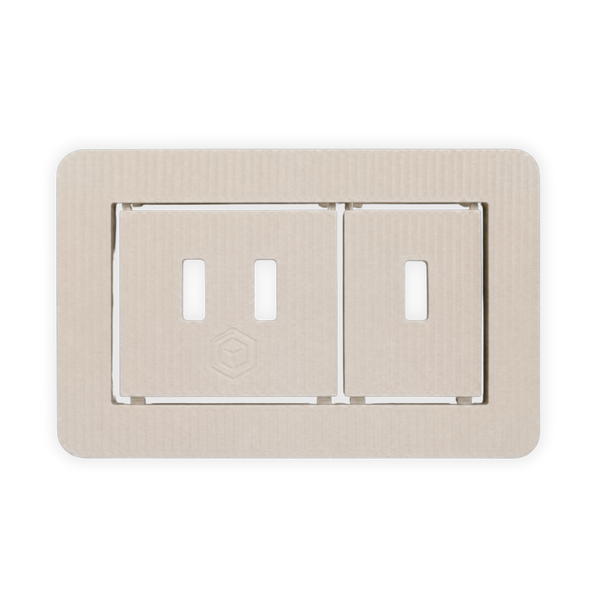

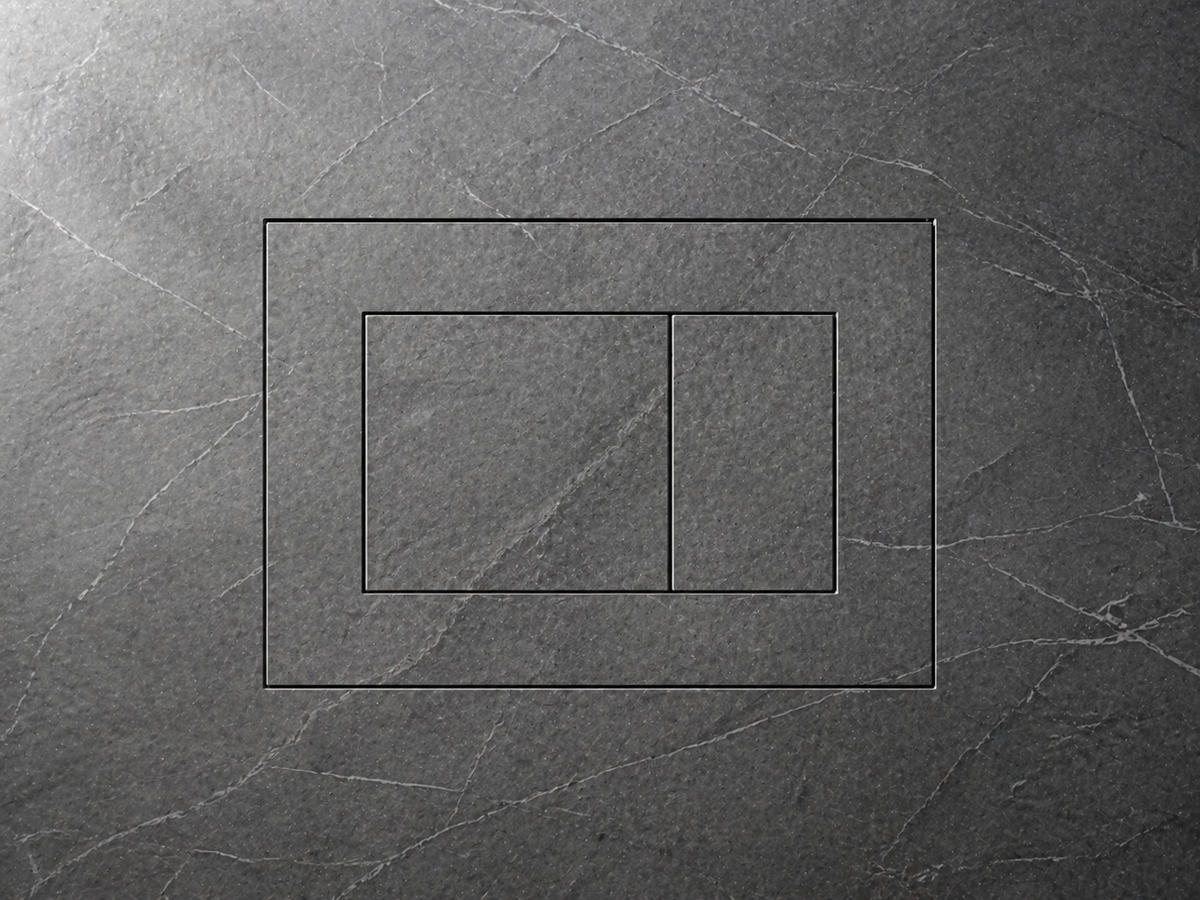

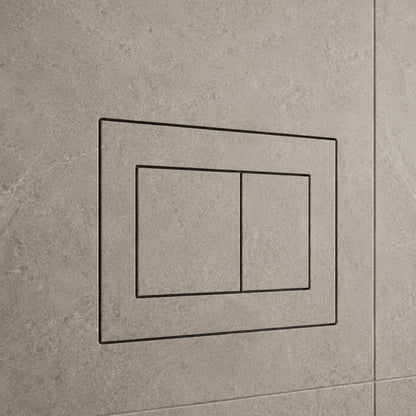

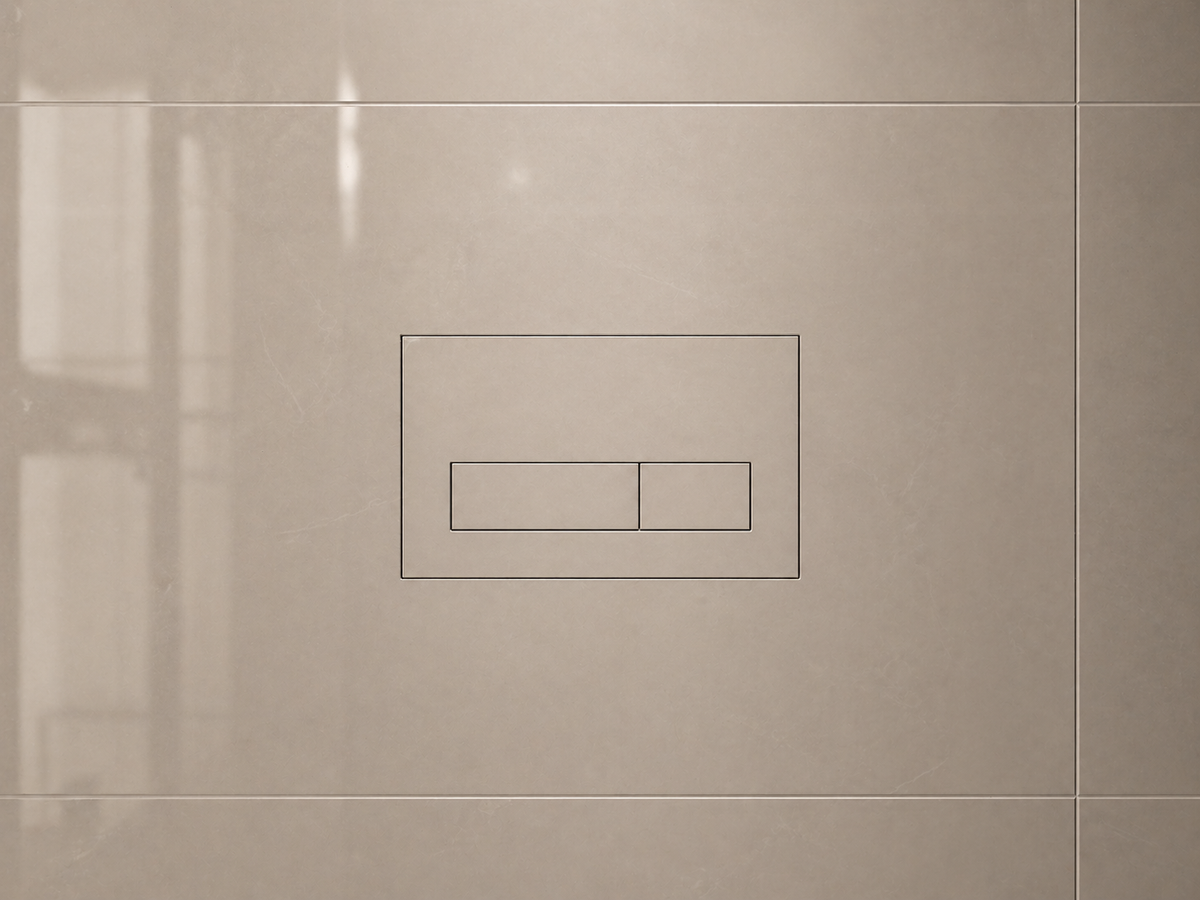

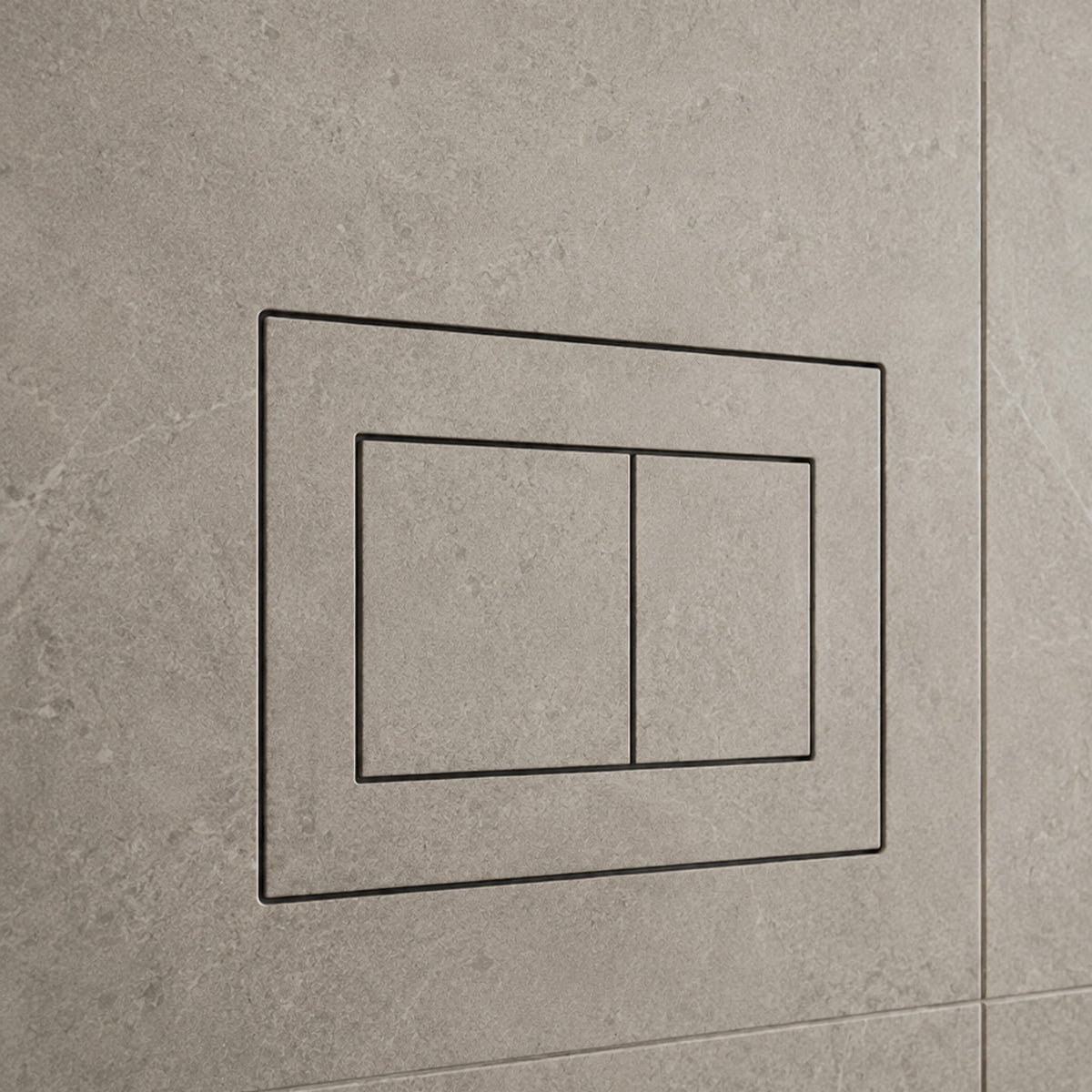

Tile-integrated flush button
PETG plate with two working flush zones.
Every detail considered
What's included
The core installation components are supplied with every flush plate. Choose the cutting-tools variant if you also need the consumable cutting set.

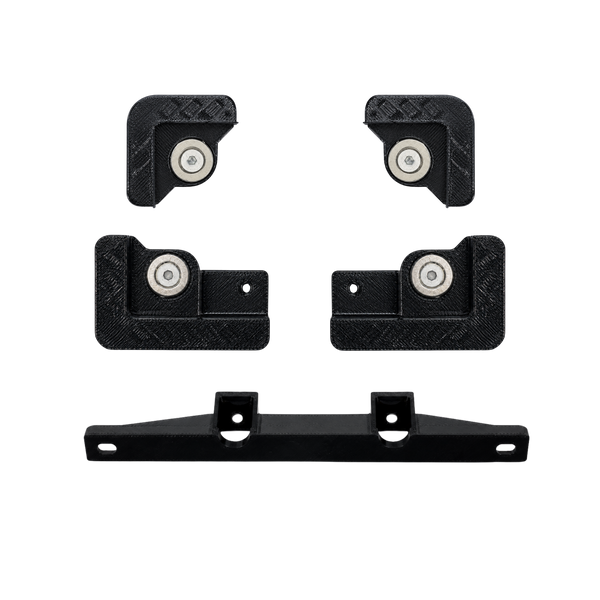

Magnetic mounting corners
Four adjustable corners for a level, removable finish.

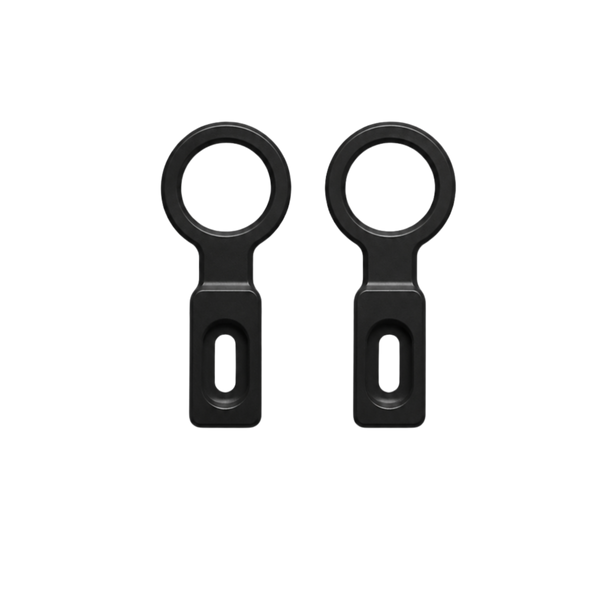

Fixing ears
Matched to the selected Geberit Sigma or TECE option.

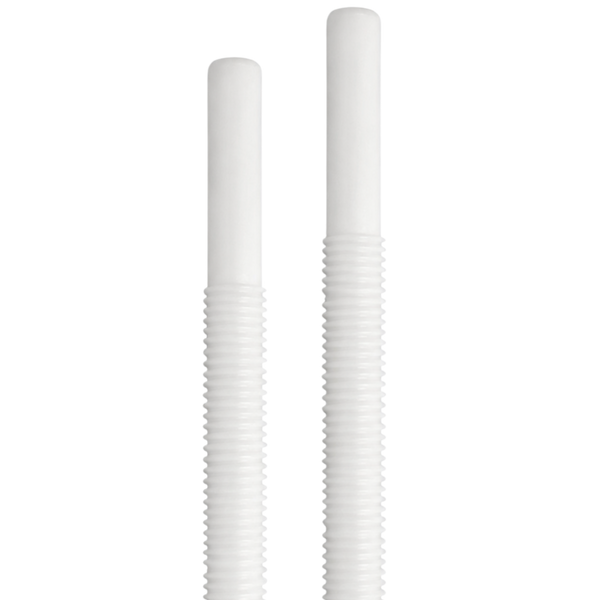

Push rods
Adjustable rods for correct dual-flush operation.

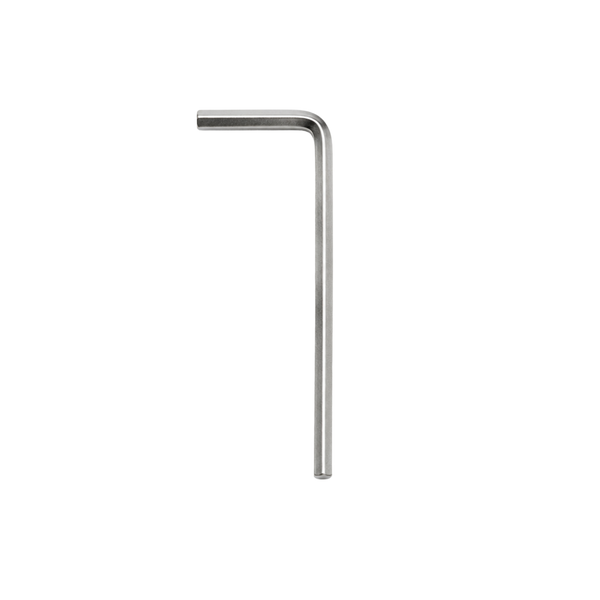

Adjustment tool
Allen key for alignment and final setup.

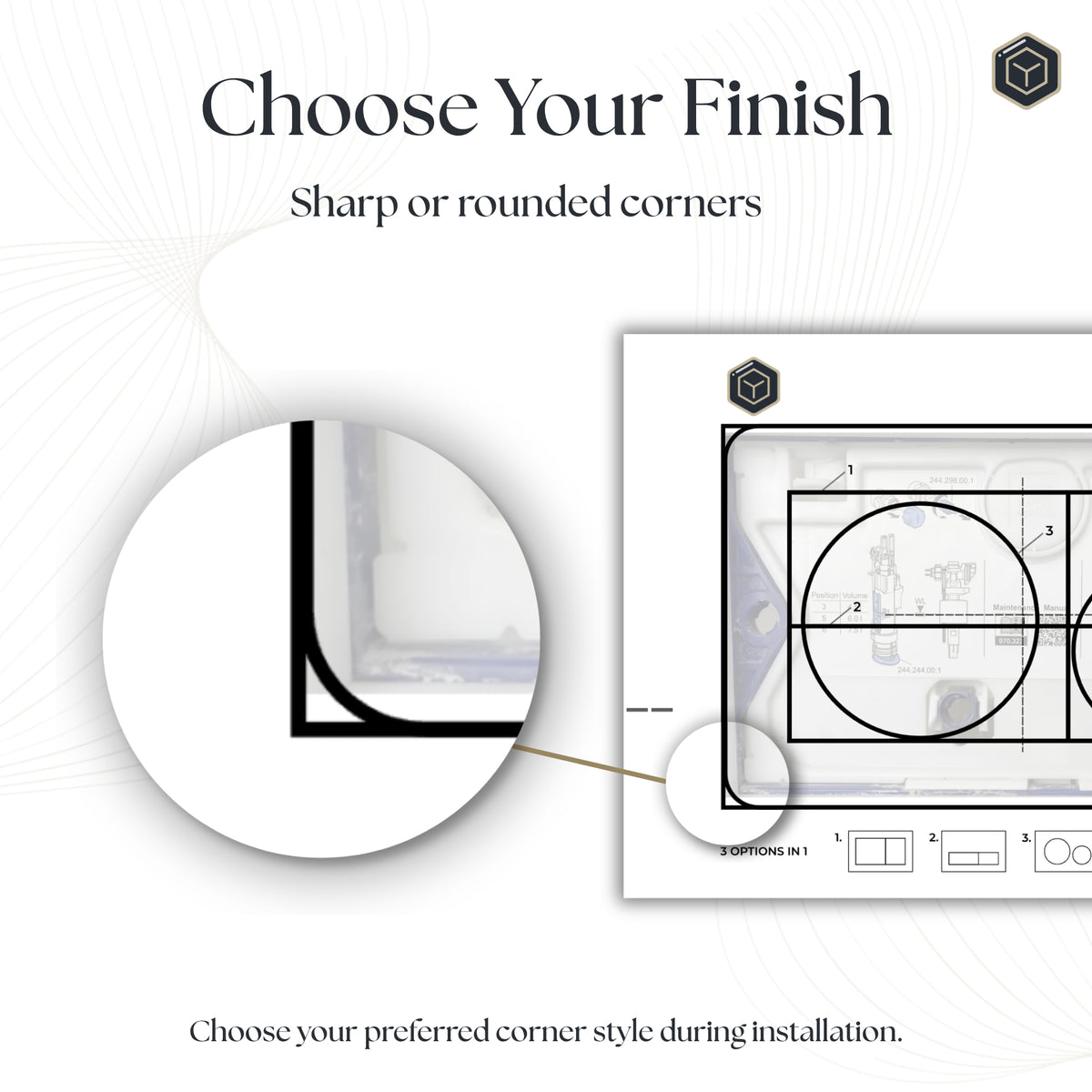

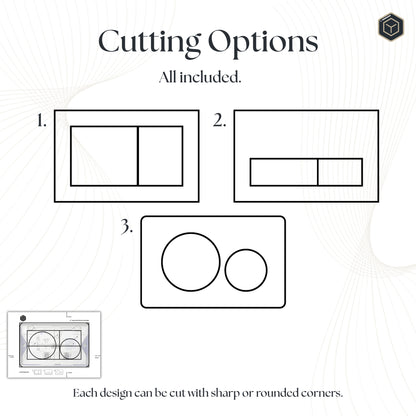

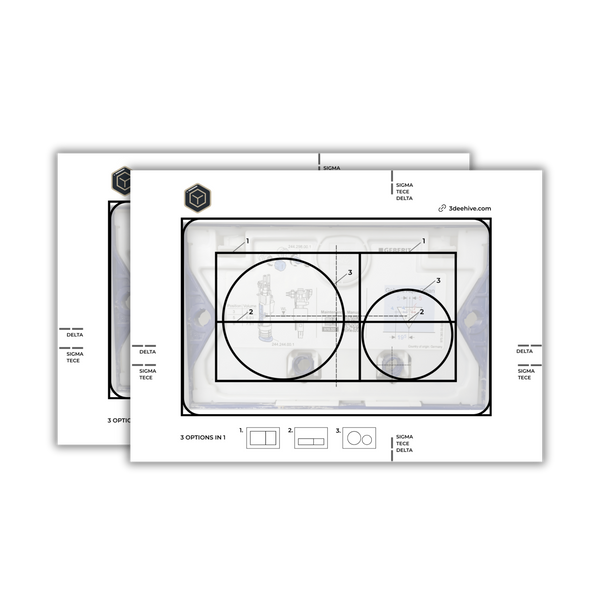

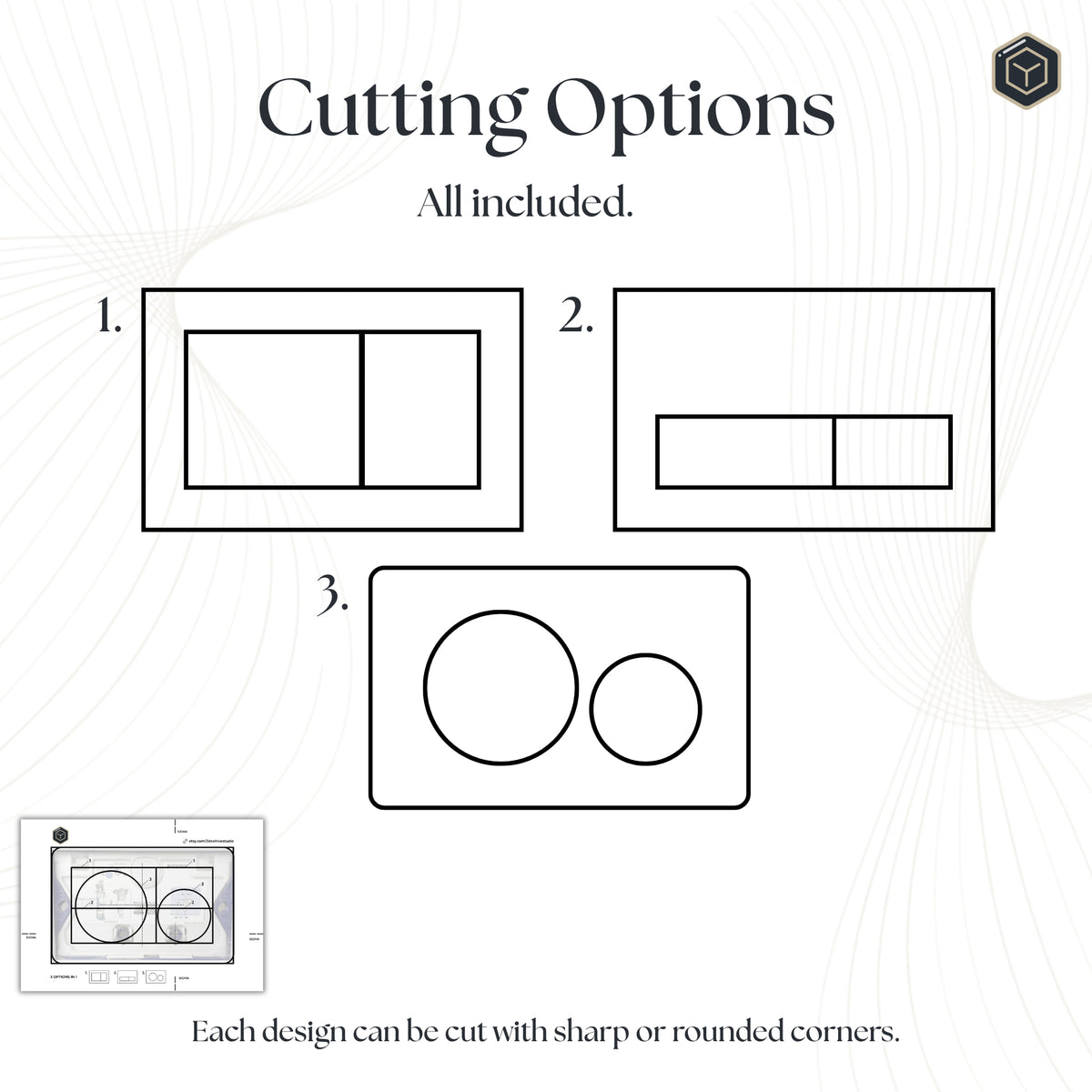

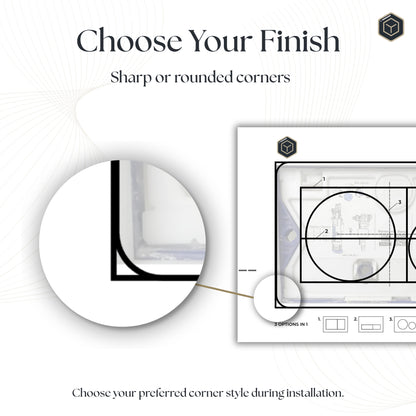

Two adhesive cutting templates
One guide for practice and one for the final tile cut.
Installation start guide
Printed preparation notes and QR access to the full manual.

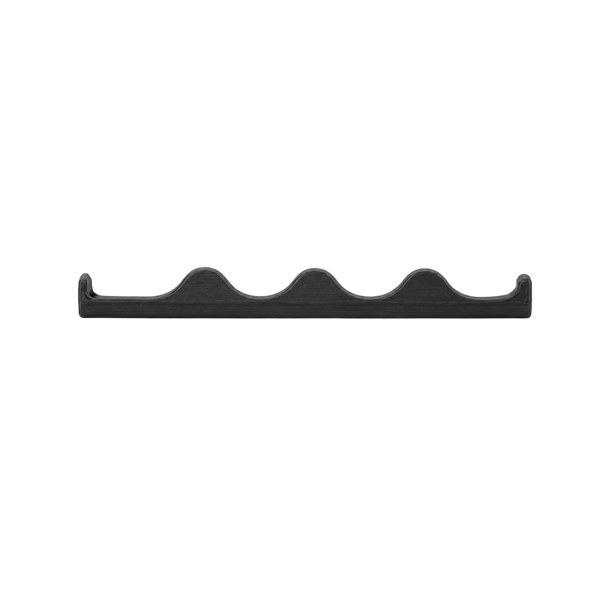

Removal hook
Allows the finished flush plate to be removed for cleaning and maintenance.

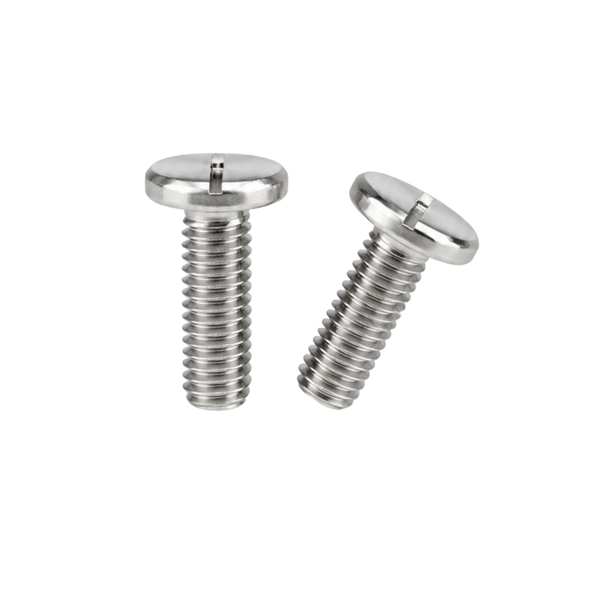

Fixings
Two M4 screws for the centre mounting bracket.
With cutting tools

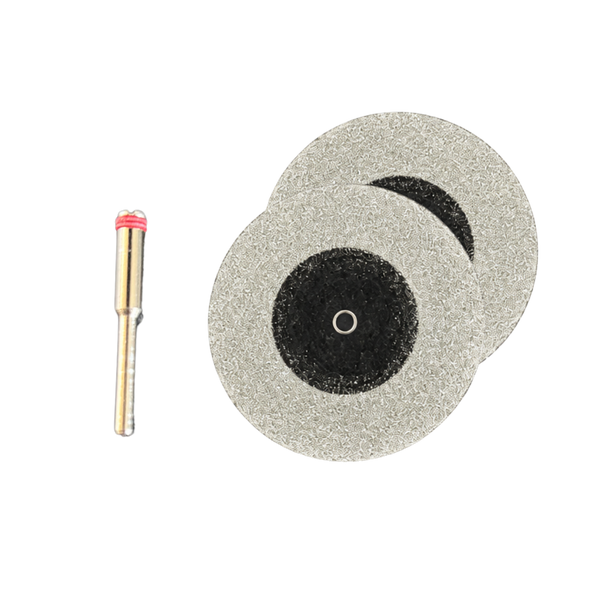

Diamond cutting discs & attachment
Diamond cutting discs with a holder for a compatible multitool.
With cutting tools

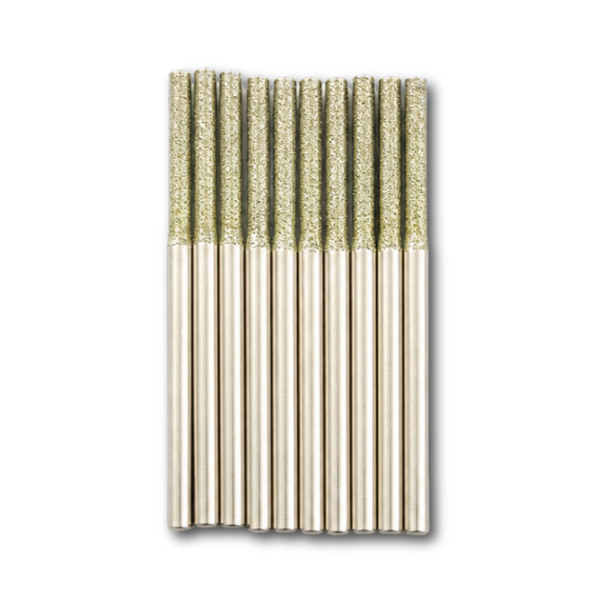

Diamond grinding bits
For controlled finishing and adjustment of the tile opening.
With cutting tools

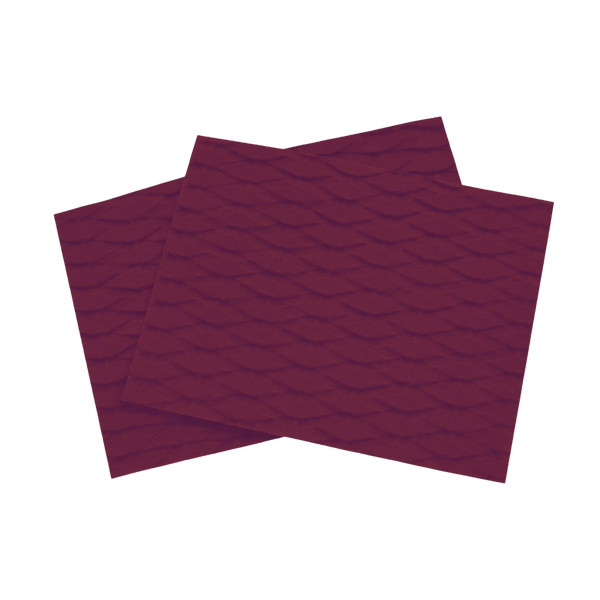

Sanding sheets
For finishing and smoothing the cut tile edges.
Cutting-tool items are included only with the With cutting tools variant. Your wall tile and multitool are not included.
Know before you install
Details, clearly organised
Compatibility, installation and delivery information in one place. If you are uncertain which concealed cistern you have, contact us before ordering or cutting tile.

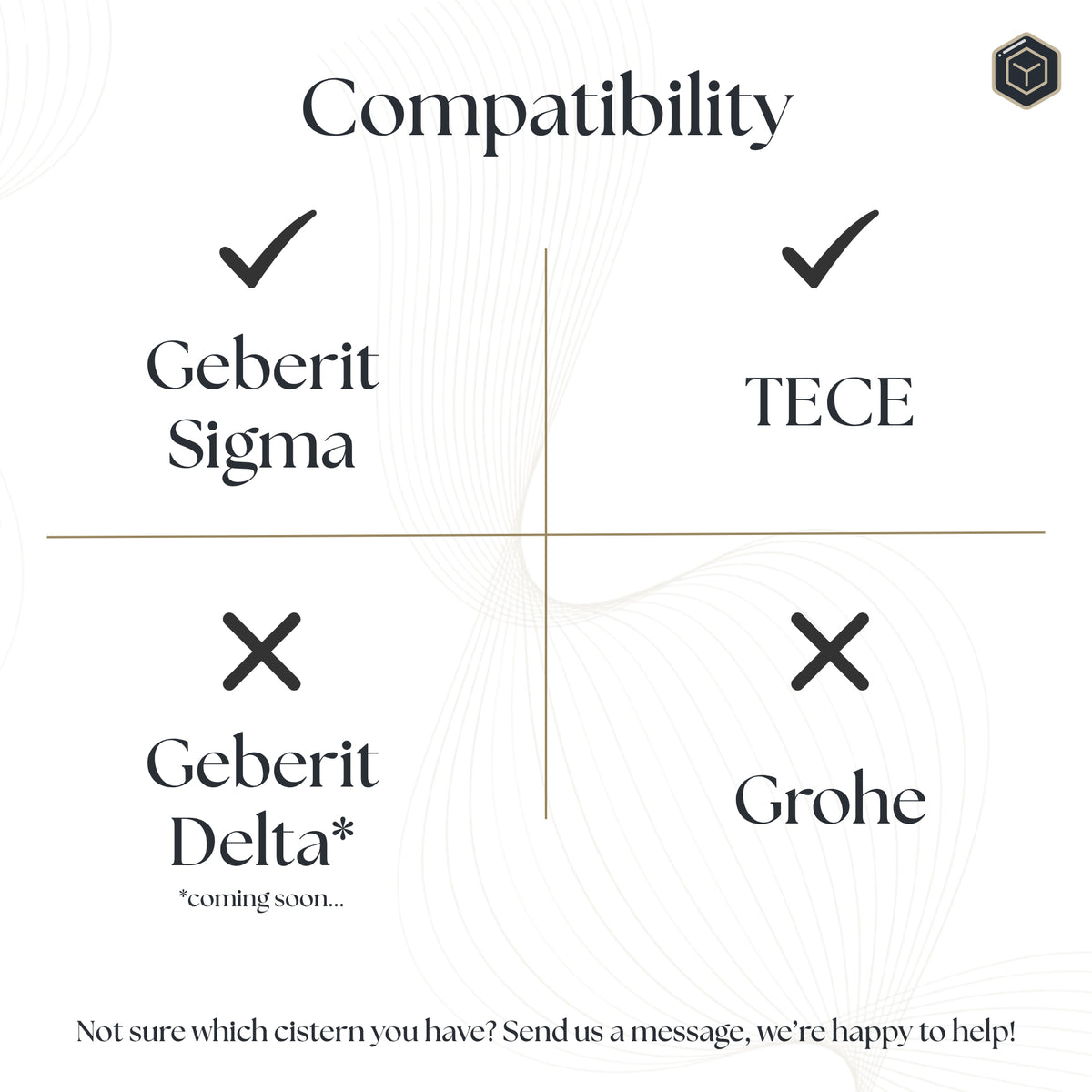

Features & compatibility

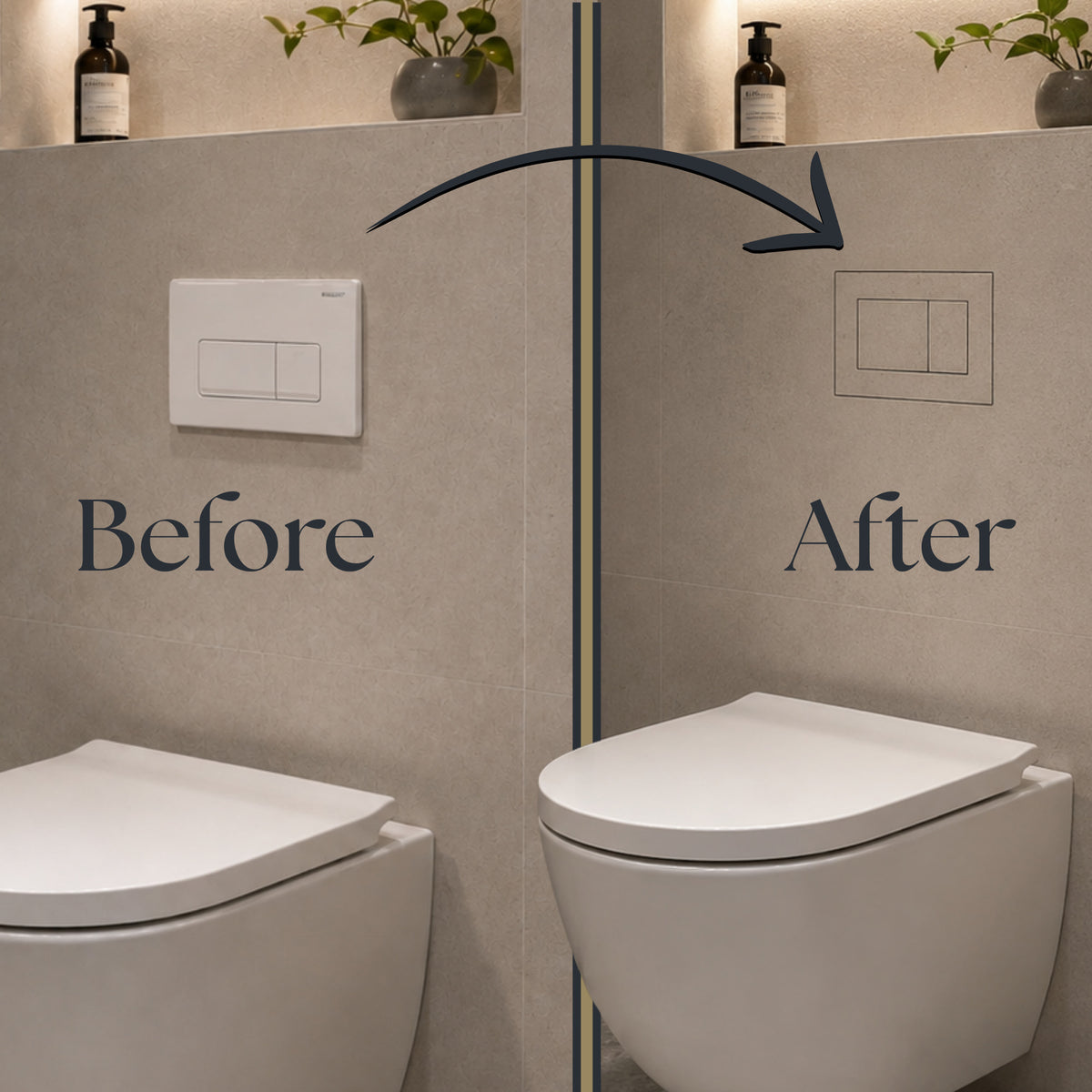

A tile-integrated flush button that keeps the cistern accessible while allowing the actuator to blend into the wall.
- Compatible with front-actuated Geberit Sigma systems
- Compatible with front-actuated TECE systems
- Not intended for Geberit Omega, Delta, Kappa or Grohe systems
- Two working flush zones
- Removable magnetic mounting system for servicing access
Identify your cistern before ordering; contact us with photographs if you are unsure.
Tile & installation requirements
- Tile material: Ceramic or porcelain
- Maximum tile thickness: 12 mm
- Required cut-out footprint: 26 × 18 cm, including mounting space
- Wall construction: Rigid and stable
- Installation: Accurate measuring, cutting and alignment are required
Installation by a qualified tiler or bathroom installer is strongly recommended. Read the full manual before cutting tile.
Tools & cutting-kit option
Every set includes:
- Installation hardware
- Adjustment tool
- Cutting and alignment template
The optional cutting set also includes:
- Two diamond cutting discs
- Five diamond grinding bits
- Two sanding sheets
- One multitool attachment
A compatible multitool, measuring tools and water for wet cutting are not included.
Specifications
Material: PETG
Mounting: Magnetic system
Cistern compatibility: Front-actuated Geberit Sigma and TECE

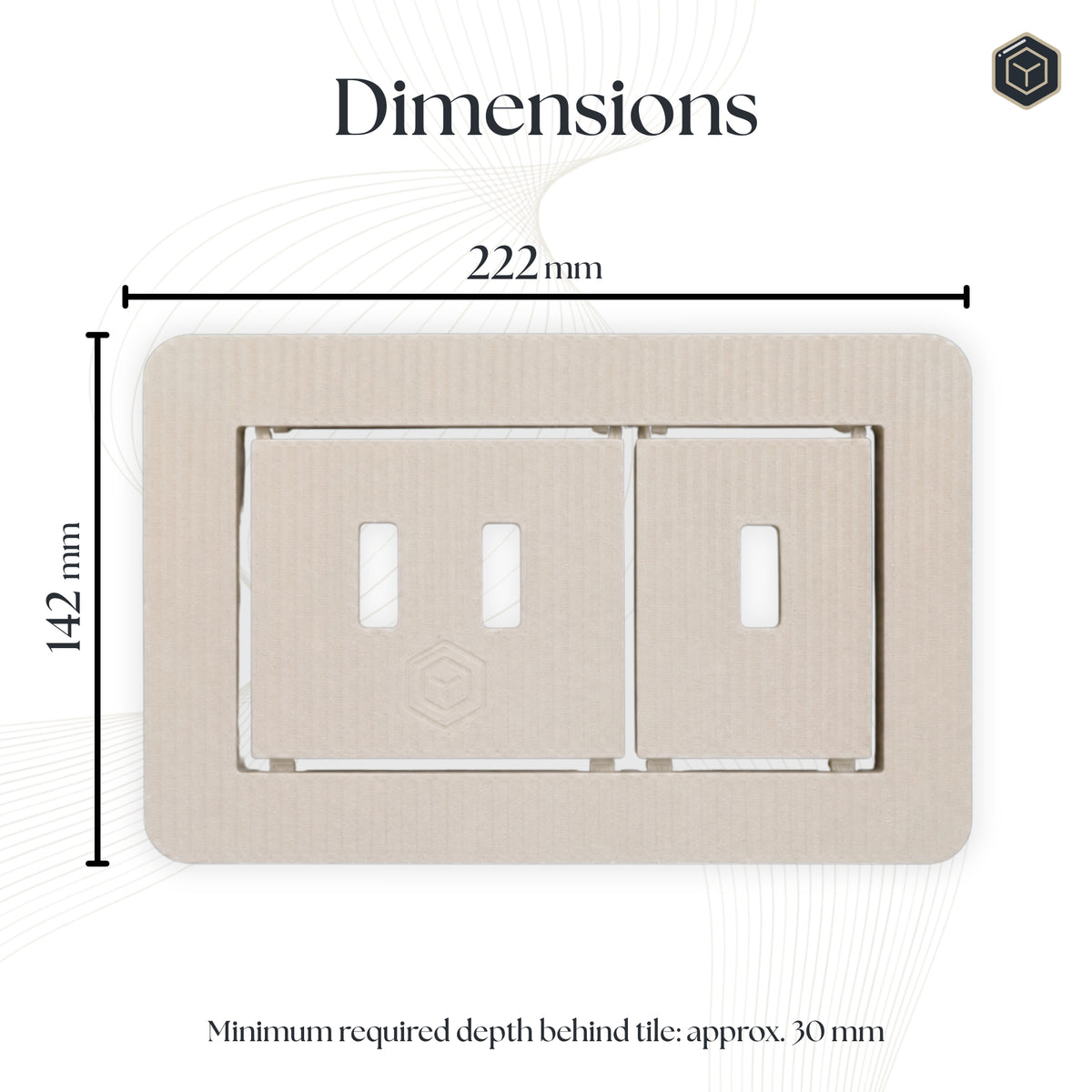

Cut-out footprint: 26 × 18 cm including mounting space
Finish: Customer-supplied tile
Production & shipping
Designed, engineered and assembled in the Netherlands. Each flush plate is made to order and normally dispatched within 4 working days after payment.
Shipping is calculated at checkout. Free shipping applies to orders of €120 or more to the Netherlands, Germany and France.

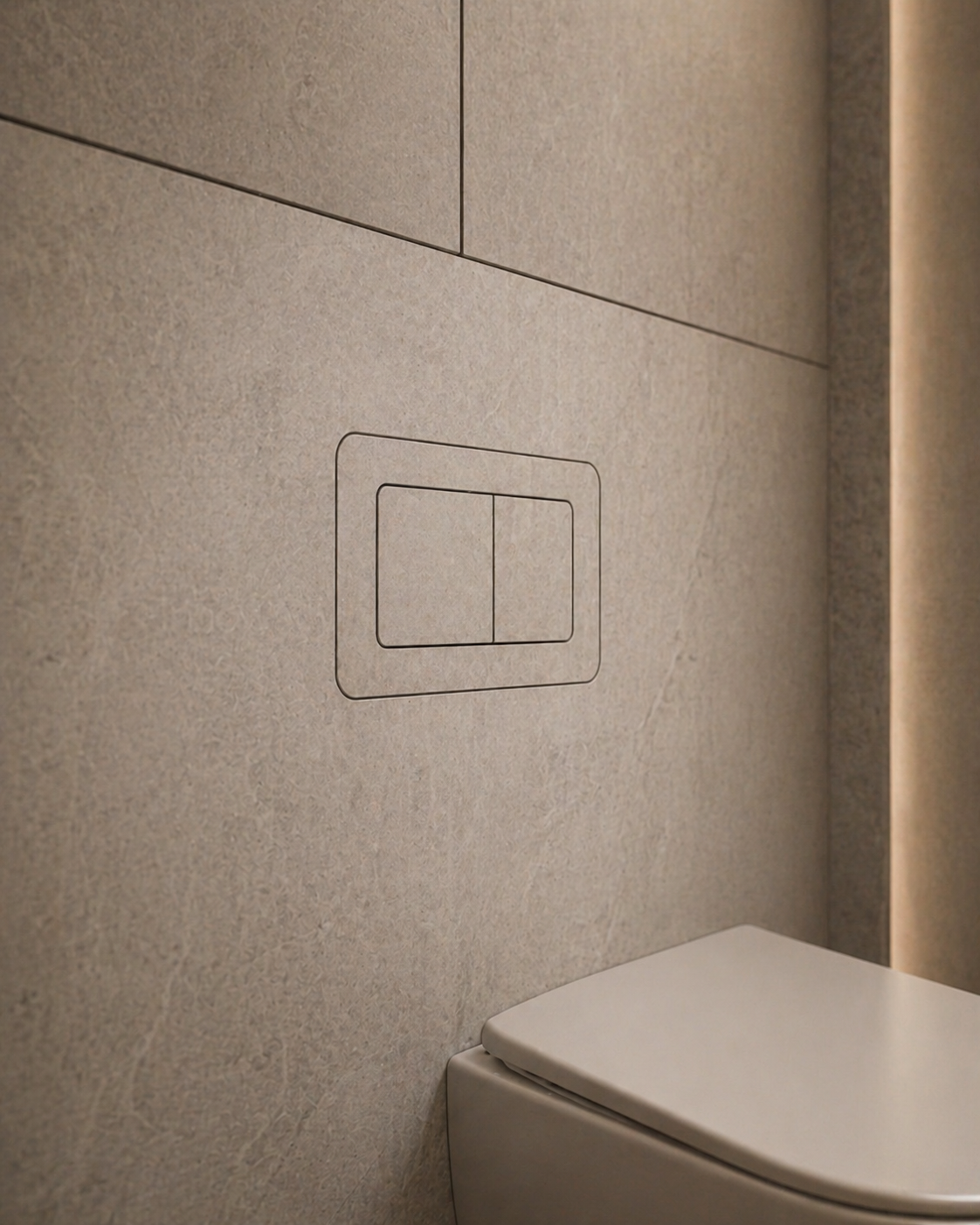

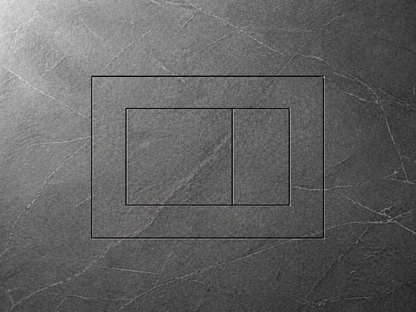

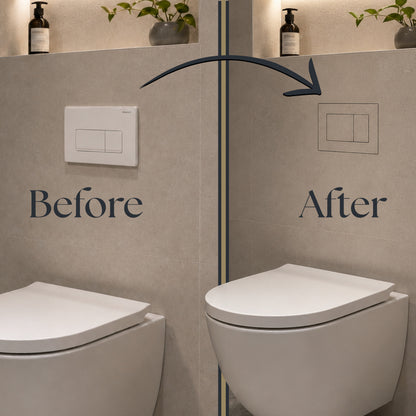

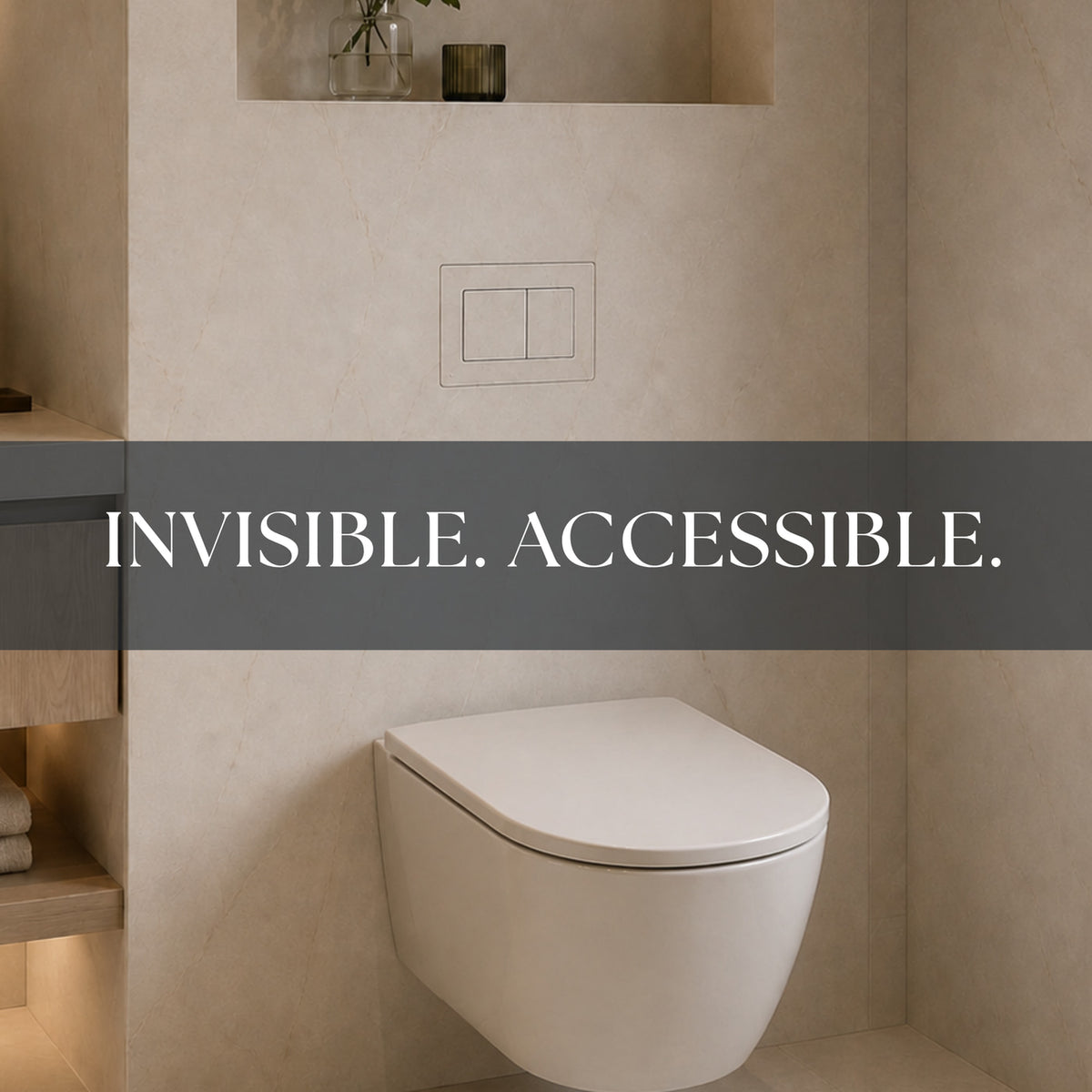

Invisible on the outside. Precise underneath.
How it works
An adjustable mounting mechanism sits behind the tiled plate. The push rods operate the cistern's two flush functions, while magnetic mounting corners keep the plate aligned and removable for servicing.
Installation at a glance
-
Confirm that your front-actuated cistern is a compatible Geberit Sigma or TECE model.
-
Measure carefully and use the supplied template to mark and prepare the tile opening.
-
Fit the mounting components and tiled plate, then adjust the corners and push rods.
-
Check that the plate sits level and both flush zones operate freely before finishing.
This overview is not a substitute for the full manual. Professional installation by a tiler or bathroom installer is strongly recommended.
